Intermediate Coil Former Machine for 170-260mm Stator OD with 90-220mm Stack Height and Φ100-200mm ID Range
製品概要
Intermediate Coil Former Machine For 170-260mm Stator OD Product Description Intermediate Forming Machine 170-260mm Stator OD ISO/SGS Audit Application Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, ...
製品カスタム属性
ハイライト:
90-220mm Stack Height Coil Forming Machine
,Φ100-200mm ID Range Stator Coil Former Machine
,6Kw Power Intermediate Coil Former Machine
基本プロパティ
起源の場所:
中国
ブランド名:
SMT
証明:
ISO/SGS Audit
モデル番号:
FZJ300
取引物件
最小注文数量:
1セット
価格:
交渉可能
パッケージの詳細:
シーリングの合板箱
受渡し時間:
8〜10週間
支払条件:
T/T、L/C
供給の能力:
7〜11週
製品説明

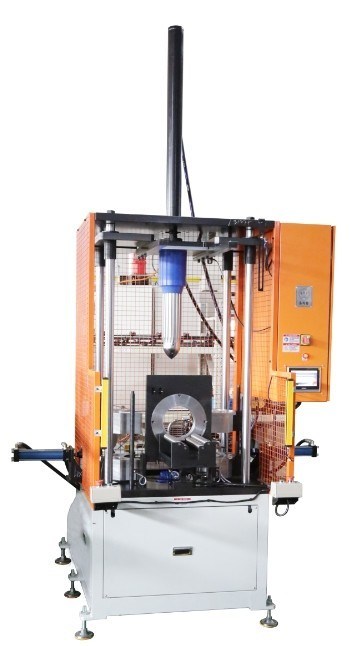

Intermediate Coil Former Machine For 170-260mm Stator OD
Product Description
Intermediate Forming Machine 170-260mm Stator OD ISO/SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more.
Information Needed for Inquiry
- Stator lamination drawing
- Stator stack drawing
- Wire connection drawing
- Stator application details
Main Technical Features
Coil Forming Machines are driven by hydraulic system, including Coil Pre-forming, Expanding, Intermediate Forming and final forming Machines. Various station configurations available.
| Model | SMT-FZJ300 |
|---|---|
| Stack Height | 90-220mm |
| OD Range | Φ170-260mm |
| ID Range | Φ100-200mm |
| Displacement of cylinder | 30L |
| Power | 6Kw |
| Power Supply | 3-phase 380V150Hz |
| Weight | ≈2300Kg |
| Dimension | (L)3700×(W)1300×(H)2600mm |
Applications
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, household appliance motors and other induction motors. Our expertise covers full production technology for various stator sizes and slot shapes.
Our Service
We prioritize both product quality and service to enhance your global market competitiveness. Whether you need machines, components, or OEM products, we are your reliable partner ready to establish long-term business relationships.
OEM/ODM Capabilities
- Innovative technical team providing complete solutions
- Specialized after-sale service with door-to-door support
- Domestic and international service network
- 24/7 customer support
Production Line Profile
We offer comprehensive motor manufacturing services including technical consulting, cost evaluation, staff training, and complete turn-key projects for AC, DC, and BLDC motors.
About Us
SMT Intelligent Device Manufacturing (Zhejiang) Co.,Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, we design and manufacture complete production lines for various motor types. ISO9001:2000 certified since 2012.
