Automatic Servo Type Stator Coil Single Lacing Machine Automatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190 The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system ...
製品カスタム属性
名前:
自動サーボ両面モーターステーターコイルターンレーシングマシンSMT - BZ190
モデル:
SMT-BZ190
固定子I.D。:
Φ110～Φ210mm
固定子O.D。:
≤Φ300mm
積み重ね高さ:
≤50mm
電源:
380V/50/60Hz 3.5Kw
スロット番号:
8~48スロット
パッケージ:
1層木製ケース
ハイライト:
Automatic Servo Control Stator Lacing Machine
,Double Sides Lacing Stator Lacing Machine
,Programmable Lacing Modes Stator Lacing Machine
基本プロパティ
起源の場所:
中国
ブランド名:
SMT
証明:
ISO / SGS Audit
モデル番号:
SMT-BZ190
取引物件
最小注文数量:
1セット
価格:
交渉可能
パッケージの詳細:
木製のボックスパッケージ
受渡し時間:
46～68日
支払条件:
T/T、L/C
供給の能力:
1個 / 46～68日
製品説明
Automatic Servo Type Stator Coil Single Lacing Machine
Automatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190

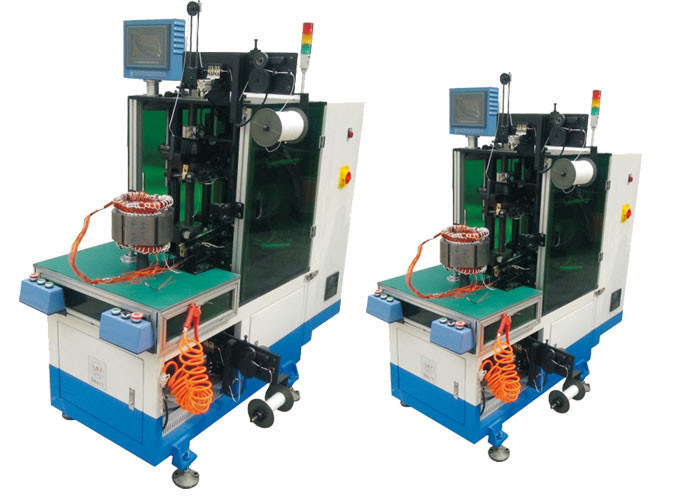

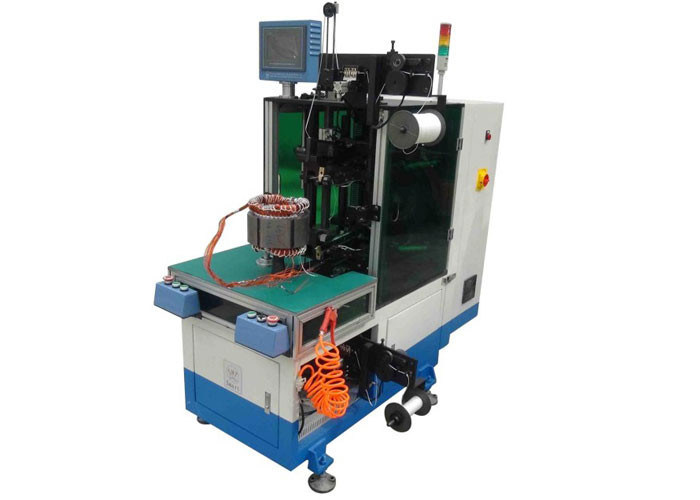

The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.
The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.
Technical Specifications
| Model | BZ190 |
|---|---|
| Stack height | 60-180mm |
| Stator I.D | 110-210mm |
| Stator O.D | ≤ 300mm |
| Height of Overhang | ≤50mm |
| Lacing mode | Slot by slot / interval slot/Fancy lacing |
| Lacing speed | 0.8s/s |
| Power supply | 380v/50/60Hz 3.5kw |
| Machine weight | About 900kg |
| Machine dimension (LxWxH) | 1500x 650x 1800mm |
Key Advantages
- Servo driven system with CNC control and HIM programming
- Servo-controlled indexing for multiple lacing modes (slot, interval, fancy)
- Servo-controlled main spindle with adjustable rotation speed
- Dual servo-driven needles for simultaneous upper/lower coil lacing
- Automatic thread feeding and cutting (no knots required)
- Quick-change tooling for stator stack lengths of 50-130mm
- Adjustable lacing tension
- High production capacity (≤1s/slot)
- Minimal copper wire/enamel damage
- High qualification rates (≥98.5% primary, ≥99.5% after rework)
- Safety grating protection system
- Two-hand start operation for operator safety
Machine Characteristics
- Industrial PLC with human-computer interface and horizontal frame-structure design
- Programmable lacing methods (slot-by-slot, interval, fancy)
- Optimized for large stators with high winding over-hang
- Movable tooling for fast loading/unloading and reduced labor
OEM/ODM Capabilities
We specialize in motor manufacturing equipment including automatic winding machines, lacing machines, inserting machines, shaping machines, and forming machines. Incorporating advanced international technology, we enhance factory automation with stable quality and comprehensive customer service. Our professional, efficient approach meets diverse customer requirements for motor production solutions.
Production Line Services
SMT provides comprehensive technical consulting and turn-key project services for AC, DC, and BLDC motor manufacturing. Our services include cost evaluation, manufacturing know-how, staff training, and complete production solutions.
About Suzhou Smart Motor Equipment Manufacturing Co.,Ltd
As a leading high-tech enterprise in China, we specialize in designing, producing and selling motor manufacturing equipment. With approximately 150 employees (including 30+ engineers), 20,000 square meters of facilities, and advanced production/test equipment, we deliver innovative solutions for the motor manufacturing industry.
