ハイライト
3 phase stator winding machine
,220V stator winding machine
,7Kw stator winding machine
-
名前AC/DCステータ・コイルの巻上げのための3段階/1台の段階の固定子の中心アセンブリ機械
-
色白
-
ワイヤー速度≤3200r/min
-
フライヤ200mm
-
移動数2-6pcs
-
電源220v/50/60Hz 7Kw
-
重さ750kg
-
寸法（L） 1800X （W） 1100X2200mm
-
巻く頭部1 から 8
-
空気圧≥0.4Mpa
-
移動の間隔≥170mm
-
起源の場所中国
-
ブランド名SMT
-
証明ISO9001/SGS Audit
-
モデル番号SMT-R160
-
最小注文数量1セット
-
価格交渉可能
-
パッケージの詳細密封袋が付いている合板箱
-
受渡し時間32 - 51日
-
支払条件T/T、L/C
-
供給の能力1pcs/32 - 51日

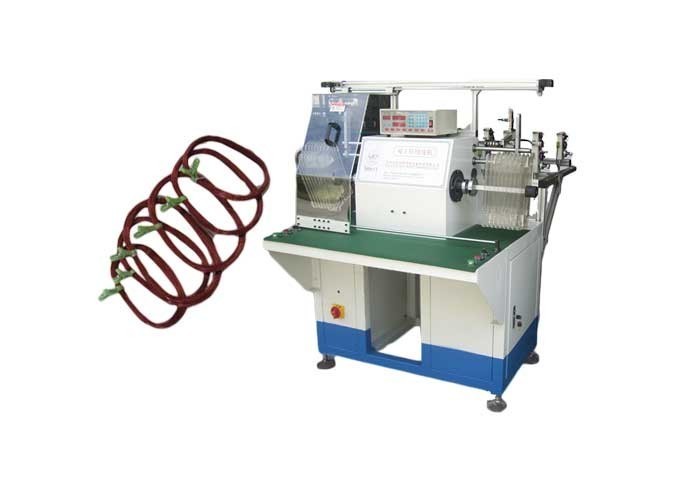

AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw
AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding

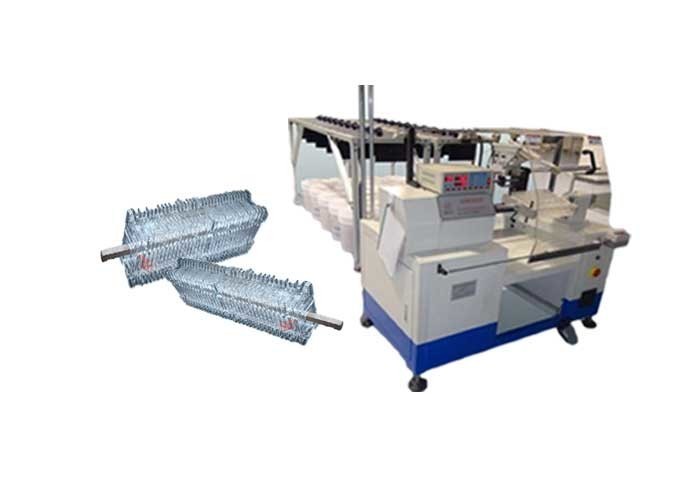

Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding applications including alternators, servo motors, and three phase motors. The machine features a specialized controller with programmable functions for arraying direction, winding start point, slow starting/ending, side stops, auto width adjustment, and auto reset.
Technical Specifications
| Parameter | Value |
|---|---|
| Swing diameter | ≤350mm |
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
Key Features
- Specialized design for multiple wire parallel coil winding
- Advanced controller with programmable winding parameters
- Significant labor and cost savings
- Precision winding capabilities for alternators, servo motors, and three phase motors
Competitive Advantages
- Versatile application across different motor types
- User-friendly operation and easy tooling changes
- Customizable solutions available
- Global support with overseas service centers
- Proven track record in international markets including USA, Europe, and South America
